lmgl::ui::UIElement Class Reference

Base class for all UI elements. More...

#include <ui_element.hpp>

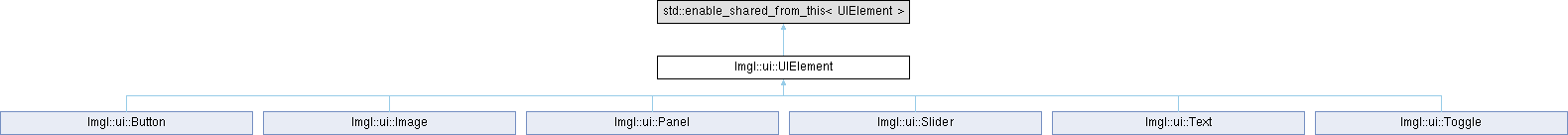

Inheritance diagram for lmgl::ui::UIElement:

Public Member Functions
	UIElement (const std::string &name="UIElement")
	Constructor for UIElement.
virtual	~UIElement ()=default
	Virtual destructor.
void	set_position (const glm::vec2 &position)
	Set the position of the UI element.
void	set_size (const glm::vec2 &size)
	Set the size of the UI element.
void	set_anchor (Anchor anchor)
	Set the anchor of the UI element.
void	set_render_order (int order)
	Set the render order (z-index).
void	set_visible (bool visible)
	Set visibility of the UI element.
void	set_name (const std::string &name)
	Set the name of the UI element.
const glm::vec2 &	get_position () const
	Get the position of the UI element.
const glm::vec2 &	get_size () const
	Get the size of the UI element.
Anchor	get_anchor () const
	Get the anchor of the UI element.
int	get_render_order () const
	Get the render order.
bool	is_visible () const
	Check if the UI element is visible.
const std::string &	get_name () const
	Get the name of the UI element.
std::shared_ptr< UIElement >	get_parent () const
	Get the parent UI element.
void	add_child (const std::shared_ptr< UIElement > child)
	Add a child UI element.
void	remove_child (const std::shared_ptr< UIElement > child)
	Remove a child UI element.
std::vector< std::shared_ptr< UIElement > >	get_children () const
	Get all child UI elements.
glm::vec2	get_absolute_position (float canvas_width, float canvas_height) const
	Compute the absolute screen position based on anchor and parent.
virtual void	render (float canvas_width, float canvas_height, const glm::mat4 &projection)=0
	Virtual render method to be overridden by derived classes.

Protected Attributes
std::string	m_name
	Name of the UI element.
glm::vec2	m_position {0.0f, 0.0f}
	Position in pixels (relative to anchor).
glm::vec2	m_size {100.0f, 100.0f}
	Size in pixels.
Anchor	m_anchor {Anchor::TopLeft}
	Anchor preset.
int	m_render_order {0}
	Render order (z-index).
bool	m_visible {true}
	Visibility flag.
std::weak_ptr< UIElement >	m_parent
	Parent UI element.
std::vector< std::shared_ptr< UIElement > >	m_children
	Child UI elements.

Detailed Description

Base class for all UI elements.

The UIElement class provides common functionality for UI components, including position, size, anchoring, visibility, and hierarchical parent-child relationships.

Constructor & Destructor Documentation

UIElement()

lmgl::ui::UIElement::UIElement

(

const std::string &

name = "UIElement"

)

Constructor for UIElement.

Parameters

name	Optional name for the UI element.

Member Function Documentation

add_child()

void lmgl::ui::UIElement::add_child

(

const std::shared_ptr< UIElement >

child

)

Add a child UI element.

Parameters

child

Shared pointer to the child element.

get_absolute_position()

glm::vec2 lmgl::ui::UIElement::get_absolute_position	(	float	canvas_width,
		float	canvas_height ) const

Compute the absolute screen position based on anchor and parent.

Parameters

canvas_width	Width of the canvas in pixels.
canvas_height	Height of the canvas in pixels.

Returns

Absolute position in pixels.

get_anchor()

Anchor lmgl::ui::UIElement::get_anchor ( ) const

inline

Get the anchor of the UI element.

Returns

Anchor preset.

get_children()

std::vector< std::shared_ptr< UIElement > > lmgl::ui::UIElement::get_children ( ) const

inline

Get all child UI elements.

Returns

Vector of shared pointers to child elements.

get_name()

const std::string & lmgl::ui::UIElement::get_name ( ) const

inline

Get the name of the UI element.

Returns

Name of the element.

get_parent()

std::shared_ptr< UIElement > lmgl::ui::UIElement::get_parent ( ) const

inline

Get the parent UI element.

Returns

Shared pointer to the parent element, or nullptr if none.

get_position()

const glm::vec2 & lmgl::ui::UIElement::get_position ( ) const

inline

Get the position of the UI element.

Returns

Position in pixels.

get_render_order()

int lmgl::ui::UIElement::get_render_order ( ) const

inline

Get the render order.

Returns

Render order value.

get_size()

const glm::vec2 & lmgl::ui::UIElement::get_size ( ) const

inline

Get the size of the UI element.

Returns

Size in pixels.

is_visible()

bool lmgl::ui::UIElement::is_visible ( ) const

inline

Check if the UI element is visible.

Returns

True if visible, false otherwise.

remove_child()

void lmgl::ui::UIElement::remove_child

(

const std::shared_ptr< UIElement >

child

)

Remove a child UI element.

Parameters

child

Shared pointer to the child element.

render()

virtual void lmgl::ui::UIElement::render ( float canvas_width, float canvas_height, const glm::mat4 & projection )

pure virtual

Virtual render method to be overridden by derived classes.

Parameters

canvas_width	Width of the canvas in pixels.
canvas_height	Height of the canvas in pixels.
projection	Projection matrix for UI rendering.

Implemented in lmgl::ui::Button, lmgl::ui::Image, lmgl::ui::Panel, lmgl::ui::Slider, lmgl::ui::Text, and lmgl::ui::Toggle.

set_anchor()

void lmgl::ui::UIElement::set_anchor ( Anchor anchor )

inline

Set the anchor of the UI element.

Parameters

anchor

Anchor preset.

set_name()

void lmgl::ui::UIElement::set_name ( const std::string & name )

inline

Set the name of the UI element.

Parameters

name	New name for the element.

set_position()

void lmgl::ui::UIElement::set_position ( const glm::vec2 & position )

inline

Set the position of the UI element.

Parameters

position

Position in pixels (x, y).

set_render_order()

void lmgl::ui::UIElement::set_render_order ( int order )

inline

Set the render order (z-index).

Higher values render on top of lower values.

Parameters

order

Render order value.

set_size()

void lmgl::ui::UIElement::set_size ( const glm::vec2 & size )

inline

Set the size of the UI element.

Parameters

size	Size in pixels (width, height).

set_visible()

void lmgl::ui::UIElement::set_visible ( bool visible )

inline

Set visibility of the UI element.

Parameters

visible

True to show, false to hide.

---

The documentation for this class was generated from the following files:

• include/lmgl/ui/ui_element.hpp
• src/ui/ui_element.cpp
